Behavioral Cloning

A project of Self-Driving Car Engineer Nanodegree

The goals / steps of this project are the following:

• Use the simulator to collect data of good driving behavior
• Build, a convolution neural network in Keras that predicts steering angles from images
• Train and validate the model with a training and validation set
• Test that the model successfully drives around track one without leaving the road

---

In this project, you, as a driver, need to train a neural network to keep a car driving in the center of the lane line. Udacity car simulator (Windows Mac Linux) is used to train the network and test how good the model behave on the road, well of course, in the simulator.

The model architecture

The model used in this project contains 9 layers, including a normalization layer, 5 convolutional layers, and 3 fully connected layers. It is inspired by PilotNet mentioned in a research paper published by Nvidia Self-driving Team.

• the normalization layer
  • used to cut off unrelated information from the camera image, such as sky, trees, and car botnet, which will make the model more generalized
  • the reset of the image data is then normalized with zero mean
  • all these helps reduce the size of the model and speed up the training
• the convolutional layers
  • the first 3 layers are processed with 3x3 stride with kernel size 5x5
  • the last 2 layers are processed by a 3x3 kernel with no stride
  • these layers are used to extract features of from the camera image
• the fully connected layers
  • designed to act as control layers to provide steering angle decision according to the features detected from previous convolutional layers
• activation layer
  • ReLu activation is used through out the network to provide non-linearity of the model
  • since this is a regression network, the final output is the steering angle, thus no activation layer is attached
• dropout layer
  • to prevent overfitting, a dropout rate of 0.5 is applied to the output of the first 2 fully connected layers

Here is the Keras network summary:

_________________________________________________________________
Layer (type)                 Output Shape              Param #
=================================================================
cropping2d_1 (Cropping2D)    (None, 65, 320, 3)        0
_________________________________________________________________
lambda_1 (Lambda)            (None, 65, 320, 3)        0
_________________________________________________________________
conv2d_1 (Conv2D)            (None, 31, 158, 24)       1824
_________________________________________________________________
conv2d_2 (Conv2D)            (None, 14, 77, 36)        21636
_________________________________________________________________
conv2d_3 (Conv2D)            (None, 5, 37, 48)         43248
_________________________________________________________________
conv2d_4 (Conv2D)            (None, 3, 35, 64)         27712
_________________________________________________________________
conv2d_5 (Conv2D)            (None, 1, 33, 64)         36928
_________________________________________________________________
flatten_1 (Flatten)          (None, 2112)              0
_________________________________________________________________
dense_1 (Dense)              (None, 100)               211300
_________________________________________________________________
dropout_1 (Dropout)          (None, 100)               0
_________________________________________________________________
dense_2 (Dense)              (None, 50)                5050
_________________________________________________________________
dropout_2 (Dropout)          (None, 50)                0
_________________________________________________________________
dense_3 (Dense)              (None, 10)                510
_________________________________________________________________
dense_4 (Dense)              (None, 1)                 11
=================================================================
Total params: 348,219
Trainable params: 348,219
Non-trainable params: 0
_________________________________________________________________

As shown above, there are a total of 348,219 parameters to train in the network.

Model training

The model get trained by observing how you drive. The simulator has two modes: training and autonomous driving. You first drive on the track and capture driving data used for training. Then, the data, the captured images, will be used to train your network.

• collect driving data
  • a total of 51,390 images are collected, and 20% of it are reserved for validation
  • one lap of driving in the center of the lane

  • one lap of driving in the center of lane, but revers direction
  • recovery driving to drive the car from side of the road back onto lane center

  • data collected from 3 cameras, e.g. left, center, right, are used

• data preprocessing
  • all the collect images are left-right flipped to expend the training dataset for more generalized network
  • the camera collected RBG images are converted to YUV color space before sent to the model
  • the sequence of the images can affect the trained model, so, for each epoch of training, the dataset are shuffled randomly to eliminate the affect
• training
  • as the model is trained on my laptop, which only has 4GB GPU memory to use, Python generator is used to keep the memory usage manageable, a batch size of 32 is used here
  • an Adam optimizer is used so that manually training the learning rate wasn't necessary
  • since we are predicting the steering angle, Mean Square Error (MSE) loss is used to determine the model quality

The model converges quite quickly. The validation dataset start to reach <0.015 after 3 epochs.

Running the project

1. Start the simulator in training mode, and collect driving examples.

   Alternertively, you can get a copy of the driving data from this link. Extract the data in to folder, so that you have the following folder structure:

   data
     |
     |-- IMG
     |    |
     |    |-- *.jpg
     |
     |-- driving_log.csv

2. Train model

   python model.py

3. Test model in simulator

   python drive.py model.h5 video

   Start simulator in autonomous driving mode. The car should start driving by itself. All copy of the driveing footage will be saved in the video folder.

4. Generate testing footage

   python video.py video

   video.mp4 will be generated.

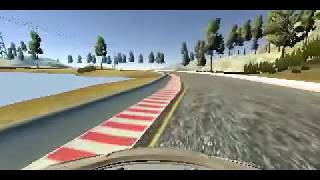

Here is a sample output from my trained model.

Note:

• The first 2 minutes of the video is to test how the car can recovery from the side of the road. You may find the footage is a bit stucky, which is due to I constantly pull the car towards the curbs manually. As shown in the video, when I pull the car to the side of the road in both straight lane and curves, the car can always recovery itself back onto the middle of the lane.
• The rest of the video demonstrated the car can self-drive for the whole lap. It navigate through the curves smoothly and keeps itself in the center of the lane all the time.
